All-in-One Compact Cleaner

Phantas

A compact all-in-one that sweeps, scrubs, vacuums, and dust mops — built for tight, complex spaces. Driven by deep learning on a million-scale dataset, Phantas recognizes obstacles by type and makes smart behavior decisions, cleaning where larger machines simply can’t fit.

Phantas
16.2 in
Cleaning width
7,534
ft² / hour
23.6 in
Min. passable width
up to 10 hrs
Runtime
Ideal for
Education Retail Office Hospitals
Core features

What makes Phantas different

Four cleaning modes in one body small enough for a 23.6-inch gap.

Four Cleaning Modes

Sweeps, scrubs, vacuums, and dust mops in one compact body — versatility for any floor, hard or soft.

Deep-Learning Recognition

Trained on a million-scale dataset, Phantas identifies obstacles by type and decides behavior — bypassing electric wires instead of driving over them.

Strong Passability

Compact enough to clear narrow aisles and under-table areas down to a 23.6-inch gap.

Smart Handle

Seamless auto/manual transition with power-assisted transport, built to endure forces up to 1000 N.

Zero Distance from Edge

Side brushes and high-precision sensors clean edges zero-distance-close.

Pure Automation

The mobile app paired with the optional workstation unlocks full operational autonomy.

Every angle

A closer look at Phantas

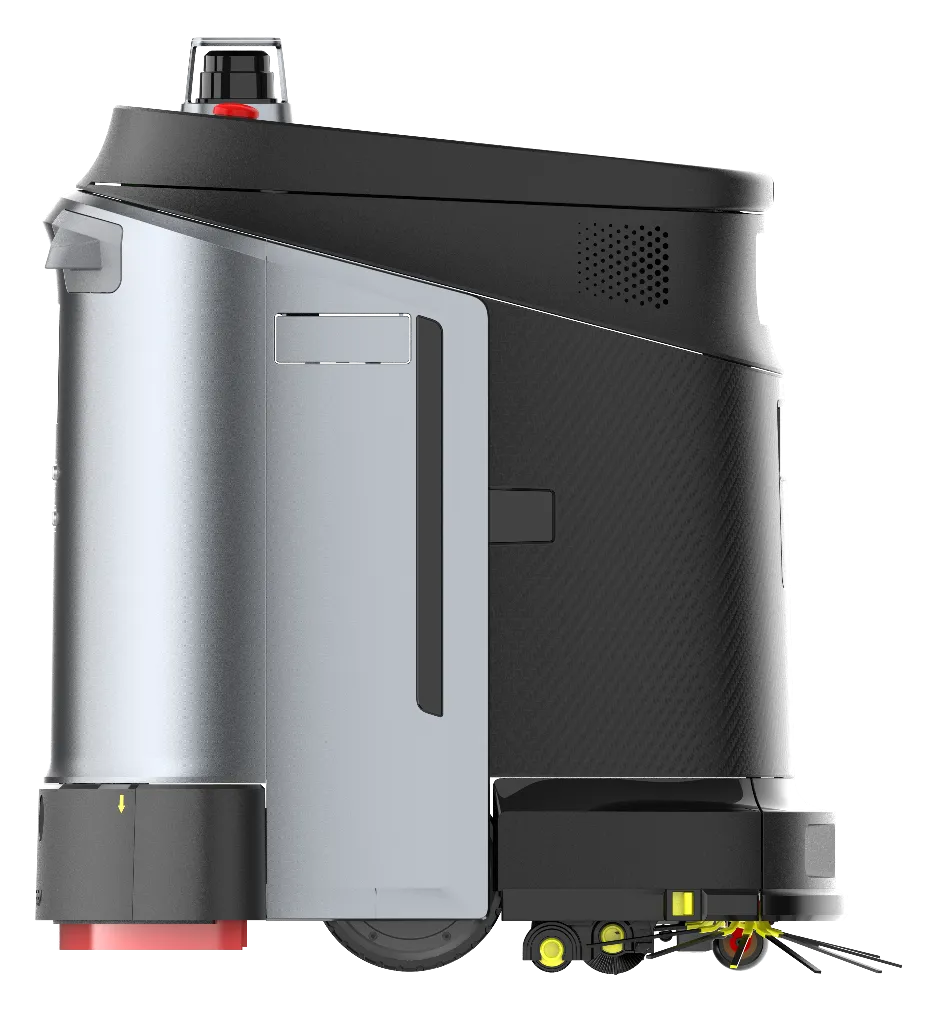

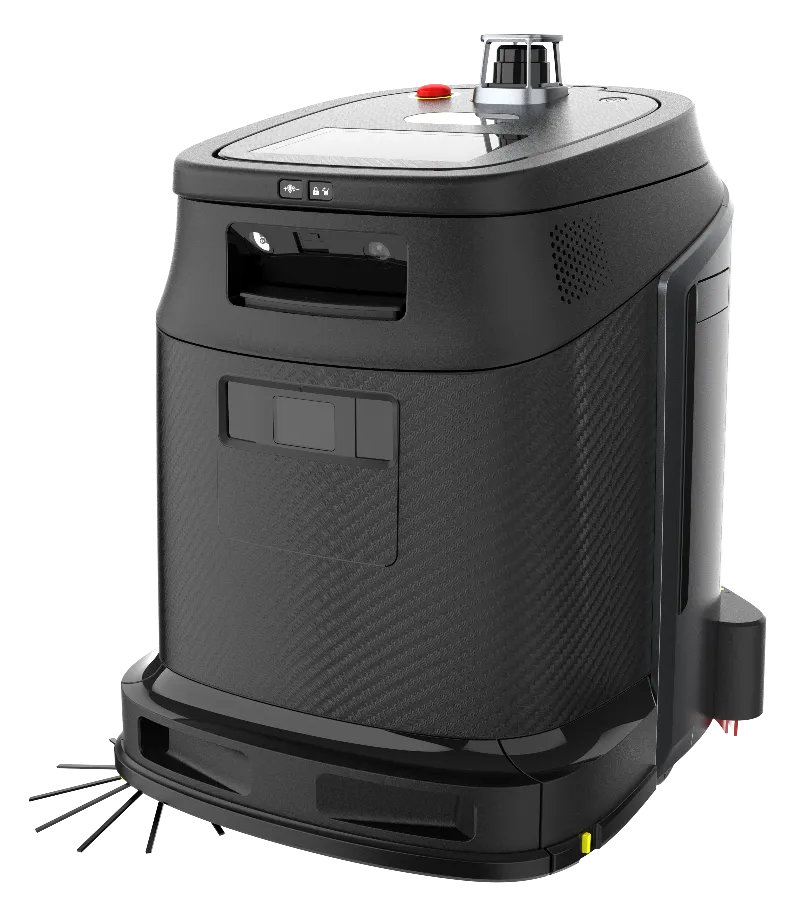

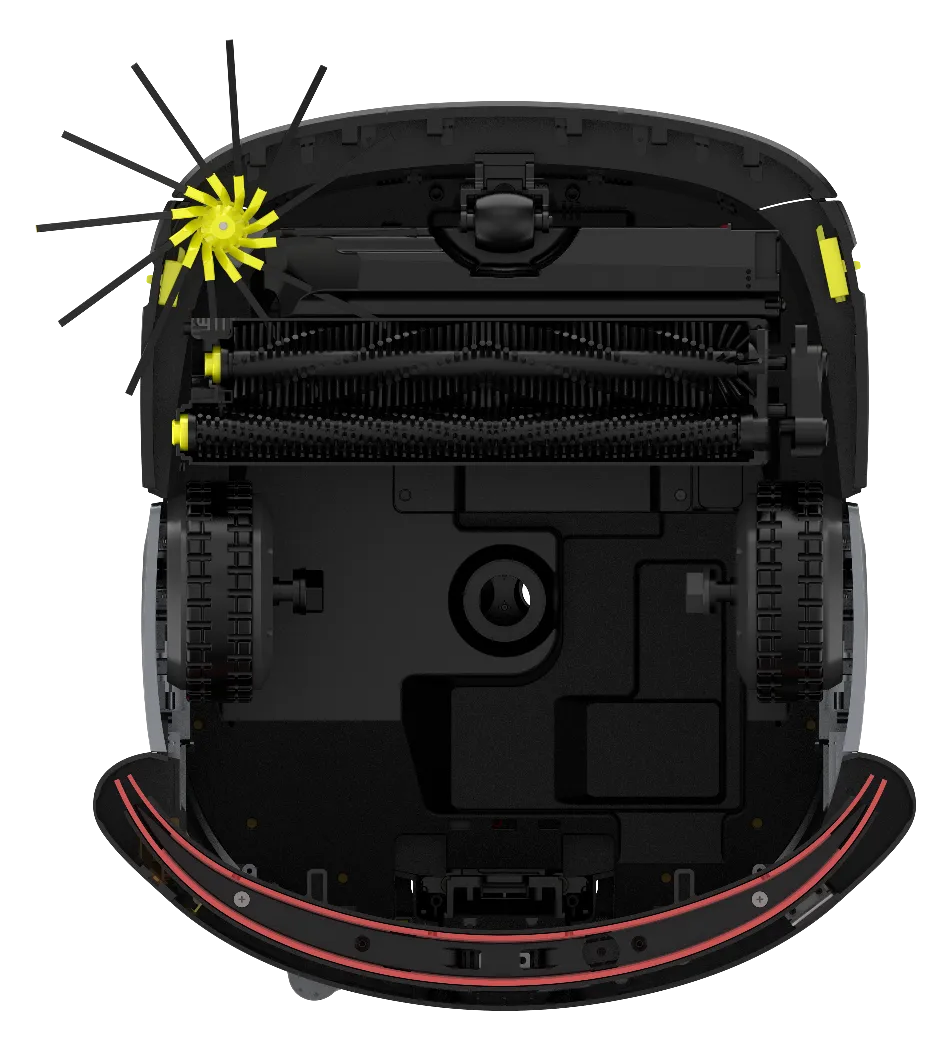

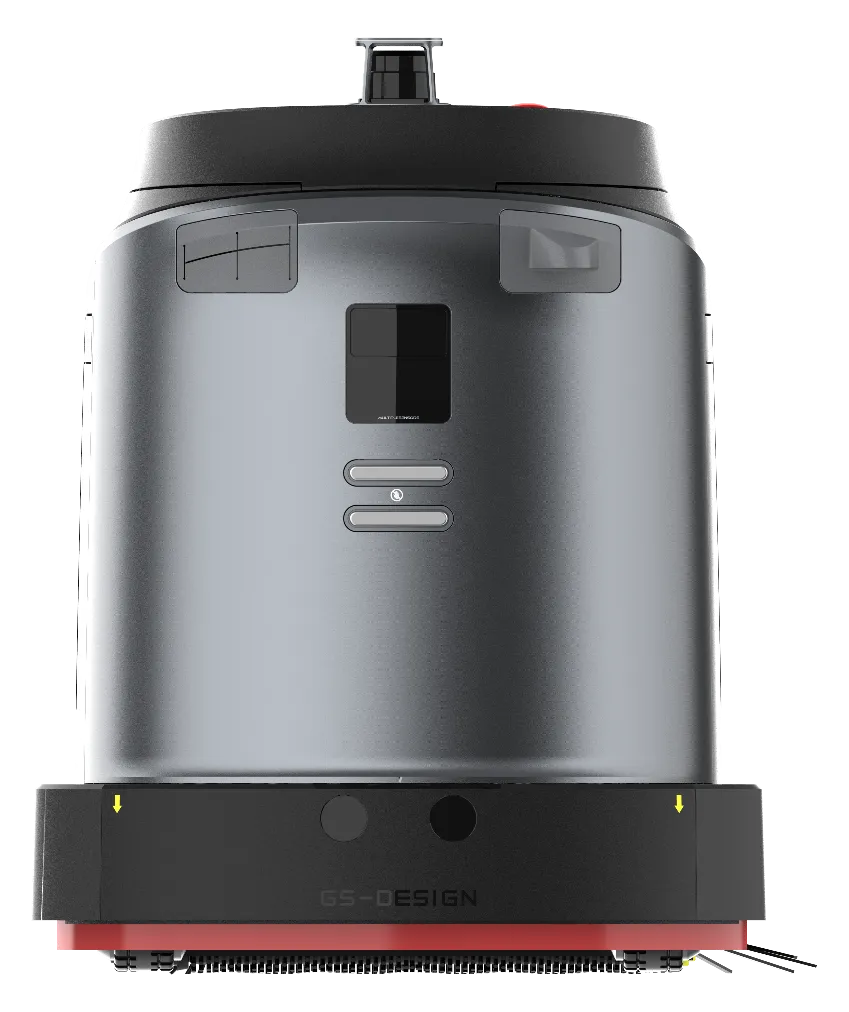

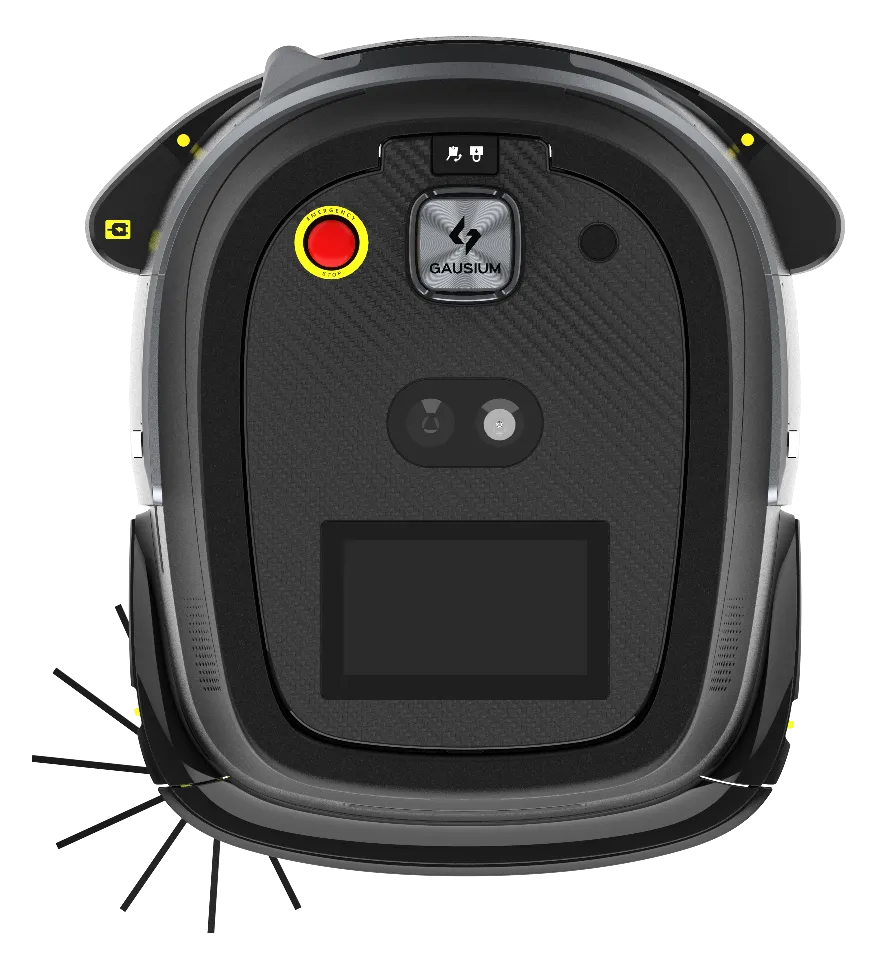

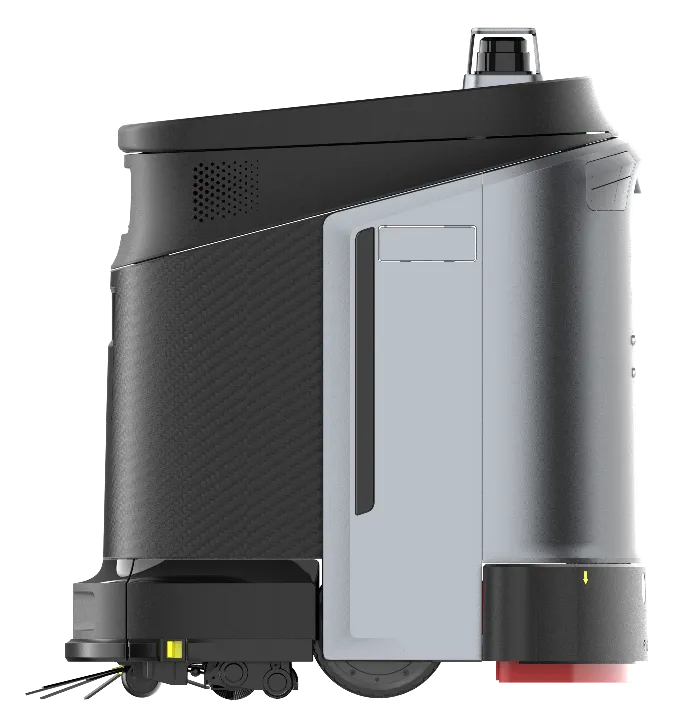

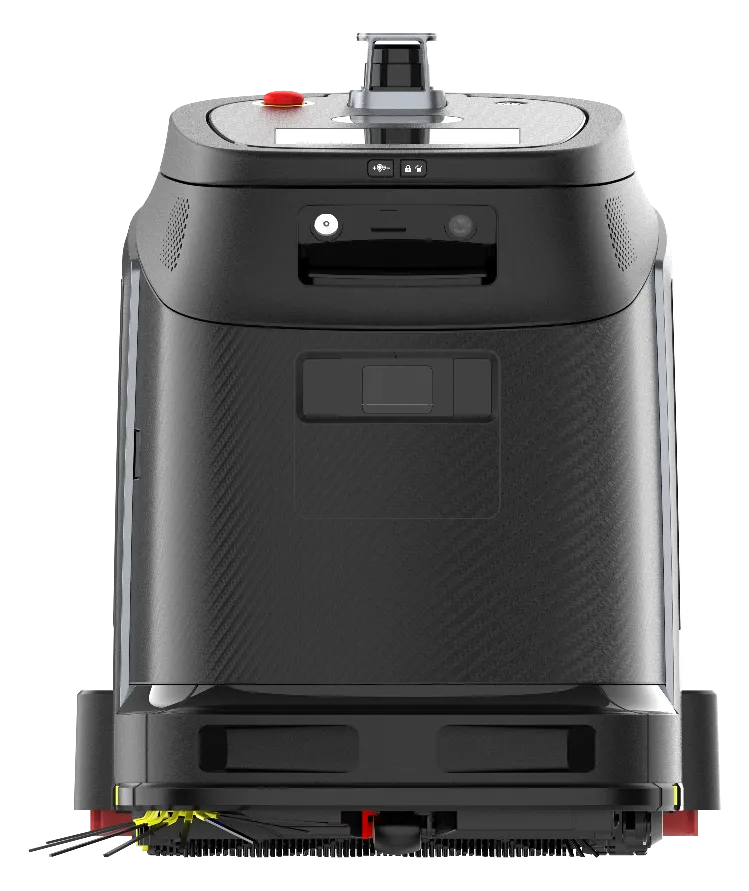

Phantas — 3/4 viewPhantas — Rear 3/4Phantas — FrontPhantas — Left profilePhantas — Right profilePhantas — RearPhantas — TopPhantas — Brush deck
Specifications

The full spec sheet

Every number that matters, straight from the engineering sheet.

Dimensions
Length 21.3 in / 540 mm
Width 17 in / 440 mm
Height 24.3 in / 617 mm
Unladen weight 106 lb / 48 kg
Cleaning width 16.2 in / 410 mm
Cleaning
Max. productivity* 4,305–7,534 ft²/h
Trash tray 0.2 gal (0.7 L)
Dust bag Holds 3–7 days of dust
Clean / waste tanks 3.0 gal / 2.8 gal
Movement
Gradeability
Max. moving speed 1.8 mph (0.8 m/s)
Min. distance from wall 0–0.7 in (0–20 mm)
Min. passable width 23.6 in (600 mm)
Electrical
Battery capacity 40 Ah
Rated voltage 24 VDC
Charging time ≈ 2.0 hours
Uptime Scrub & vac 4.5 h · Sweep & dust mop 10 h

*Maximum theoretical coverage. Real-world productivity varies by environment, layout, and soil load.

Power & automation

Two ways to keep Phantas charged and running.

Every Phantas ships with the CS-03 charging station. Scrub-capable 2025 and newer units can step up to the WS-03 workstation for fully unattended wet-cleaning shifts.

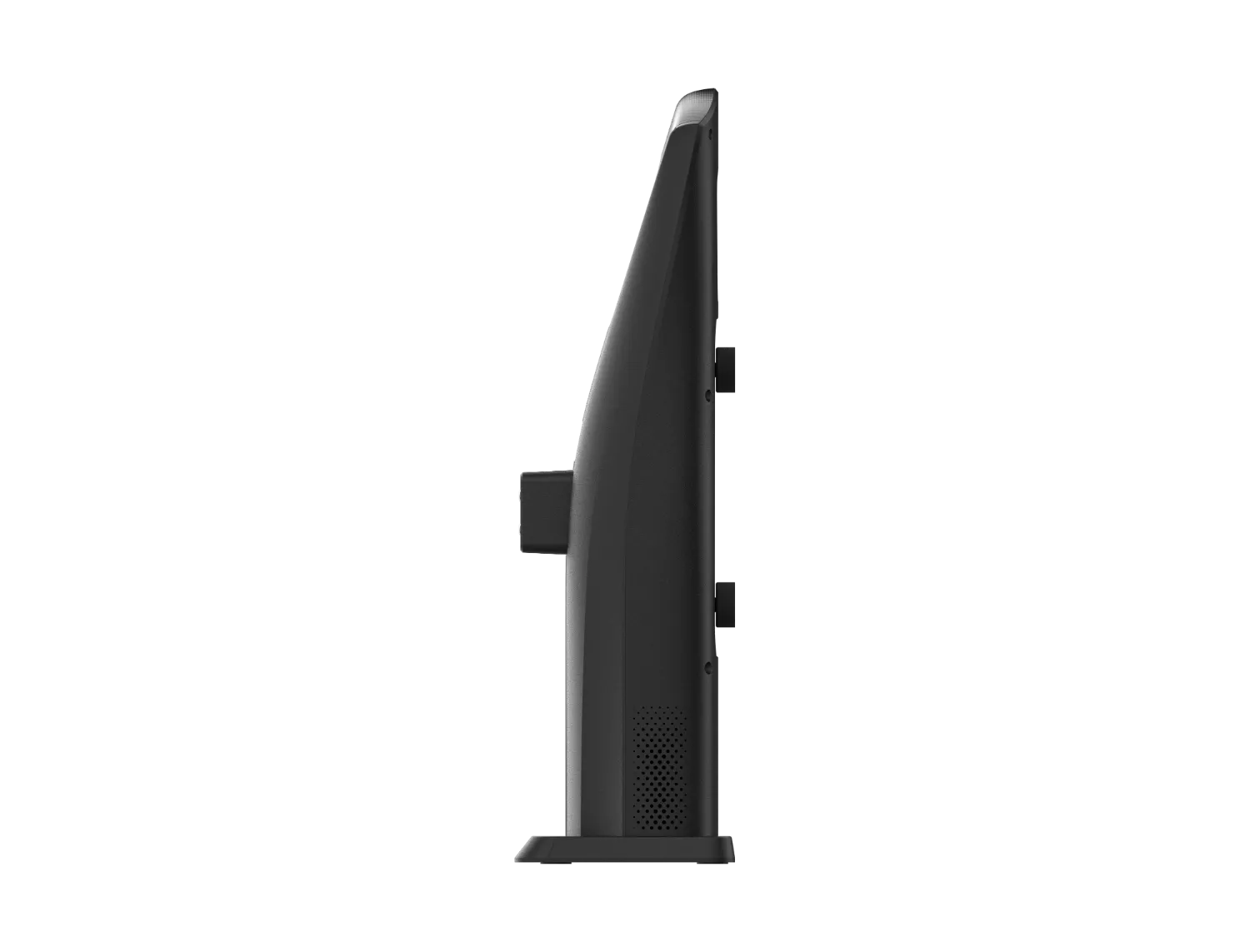

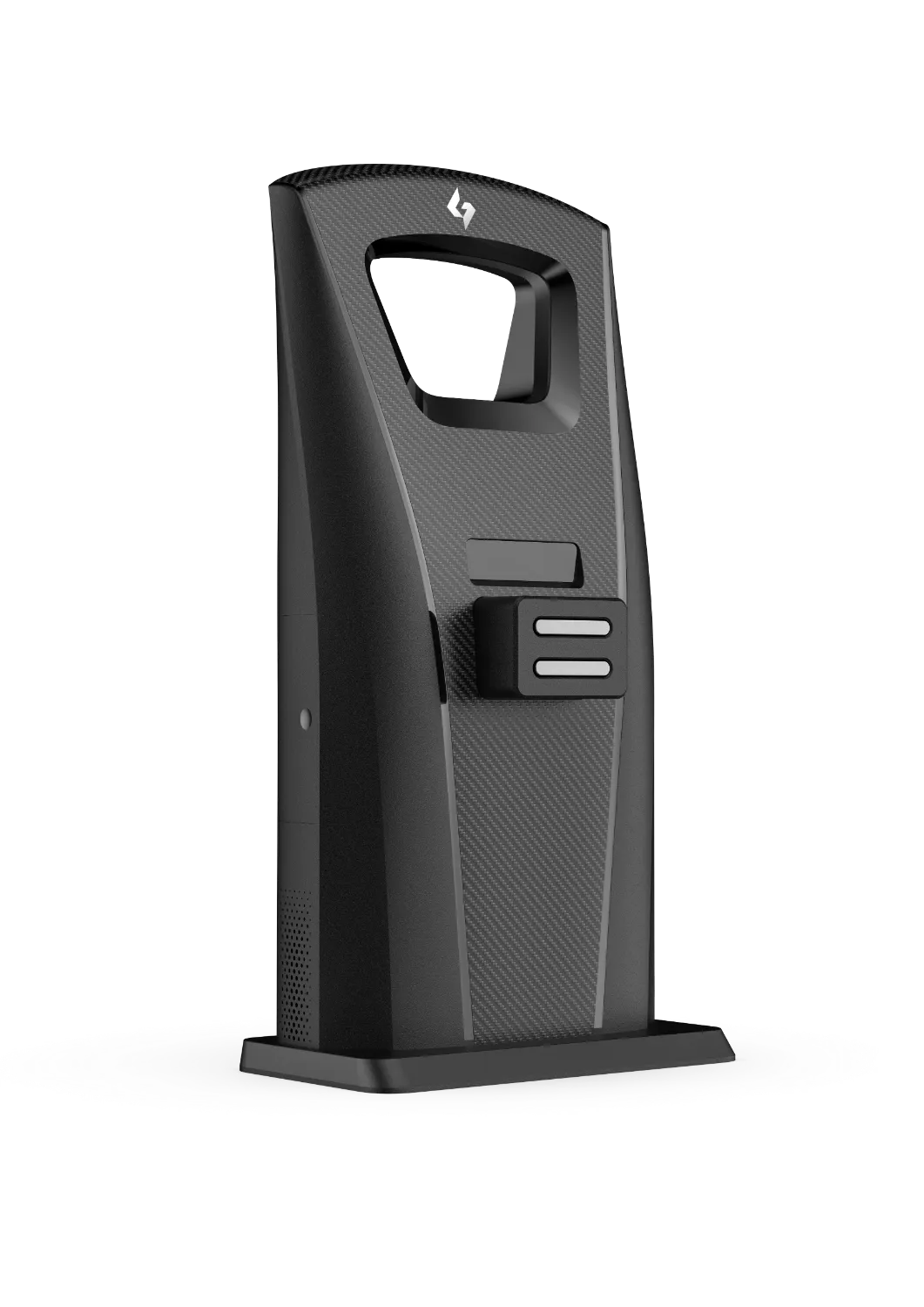

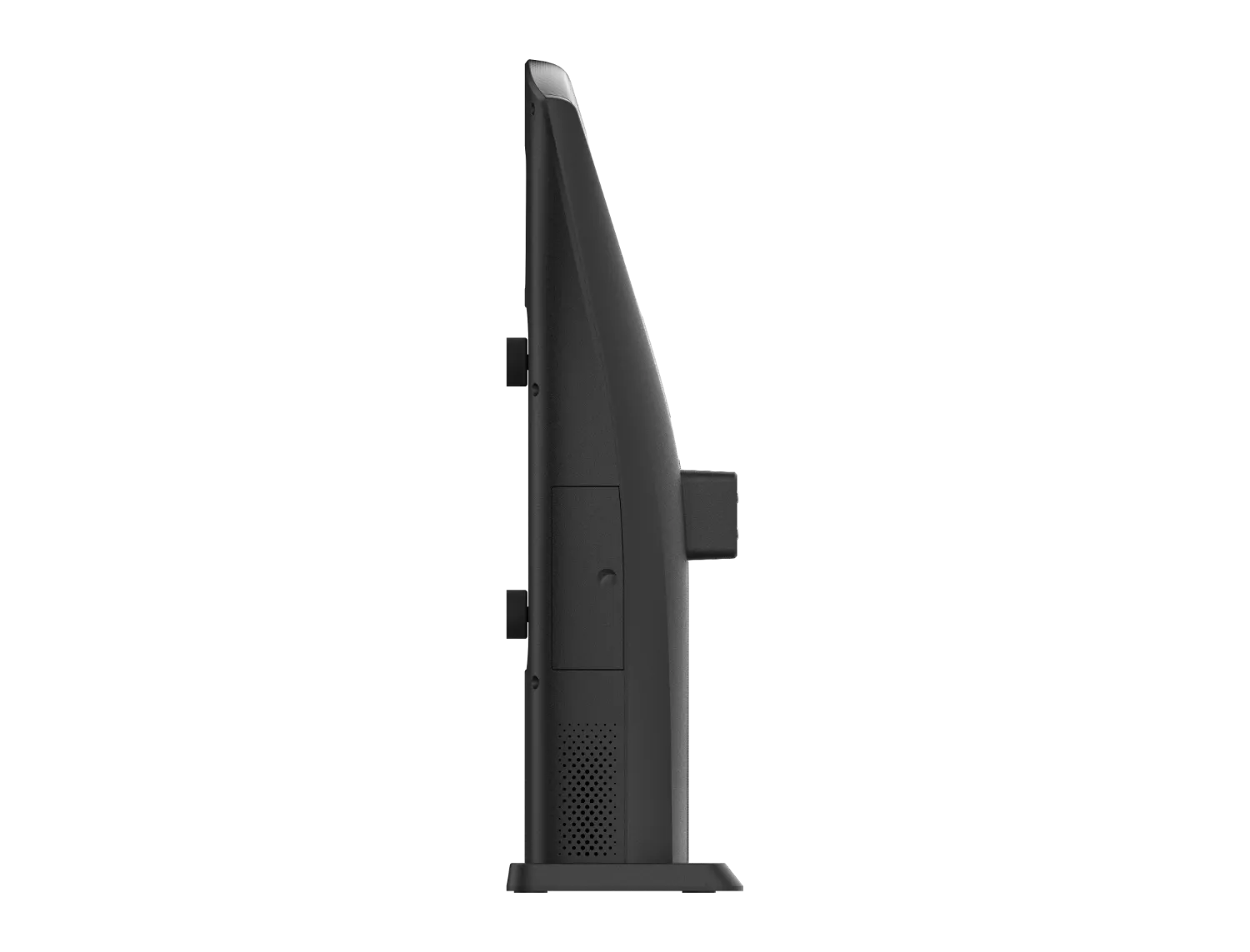

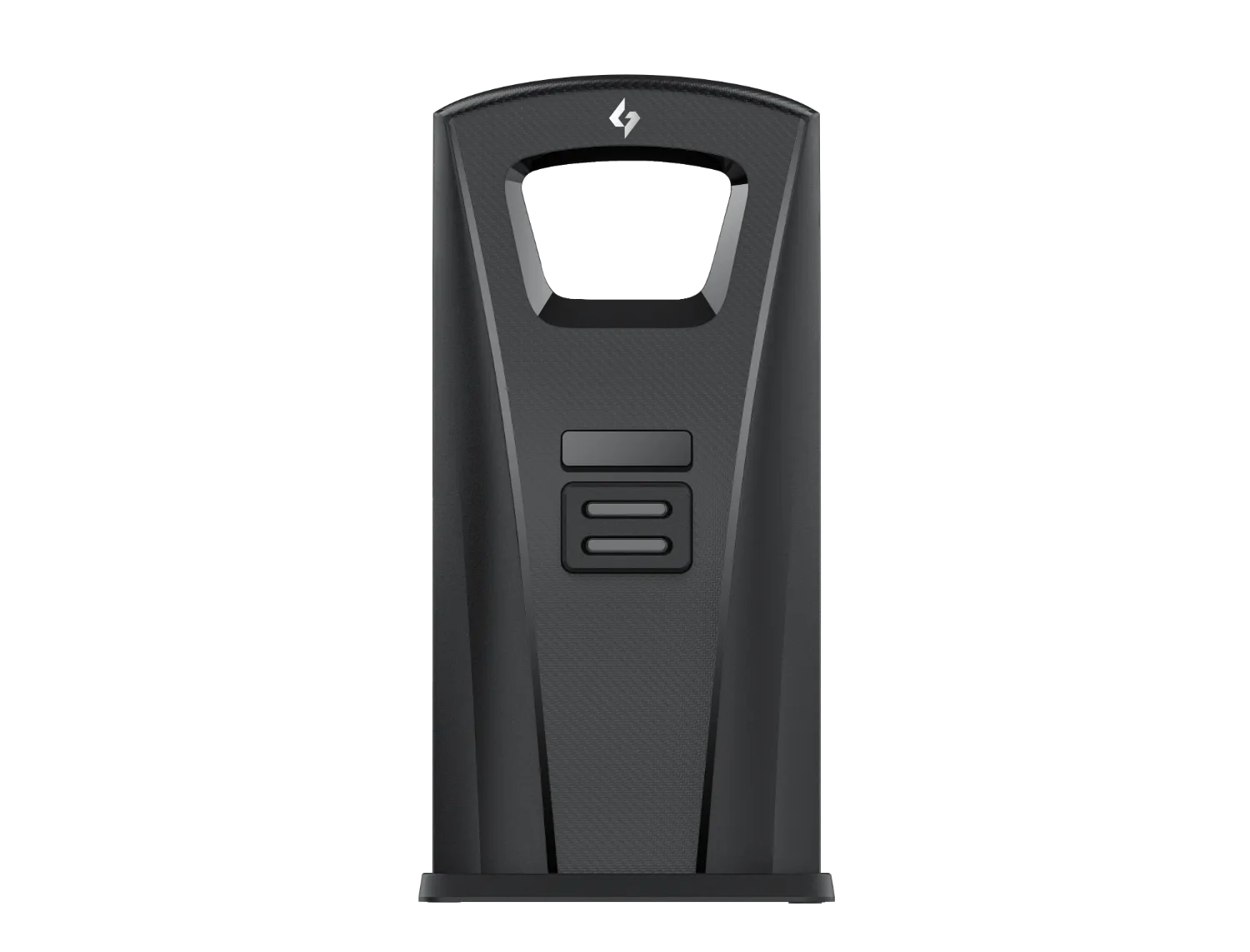

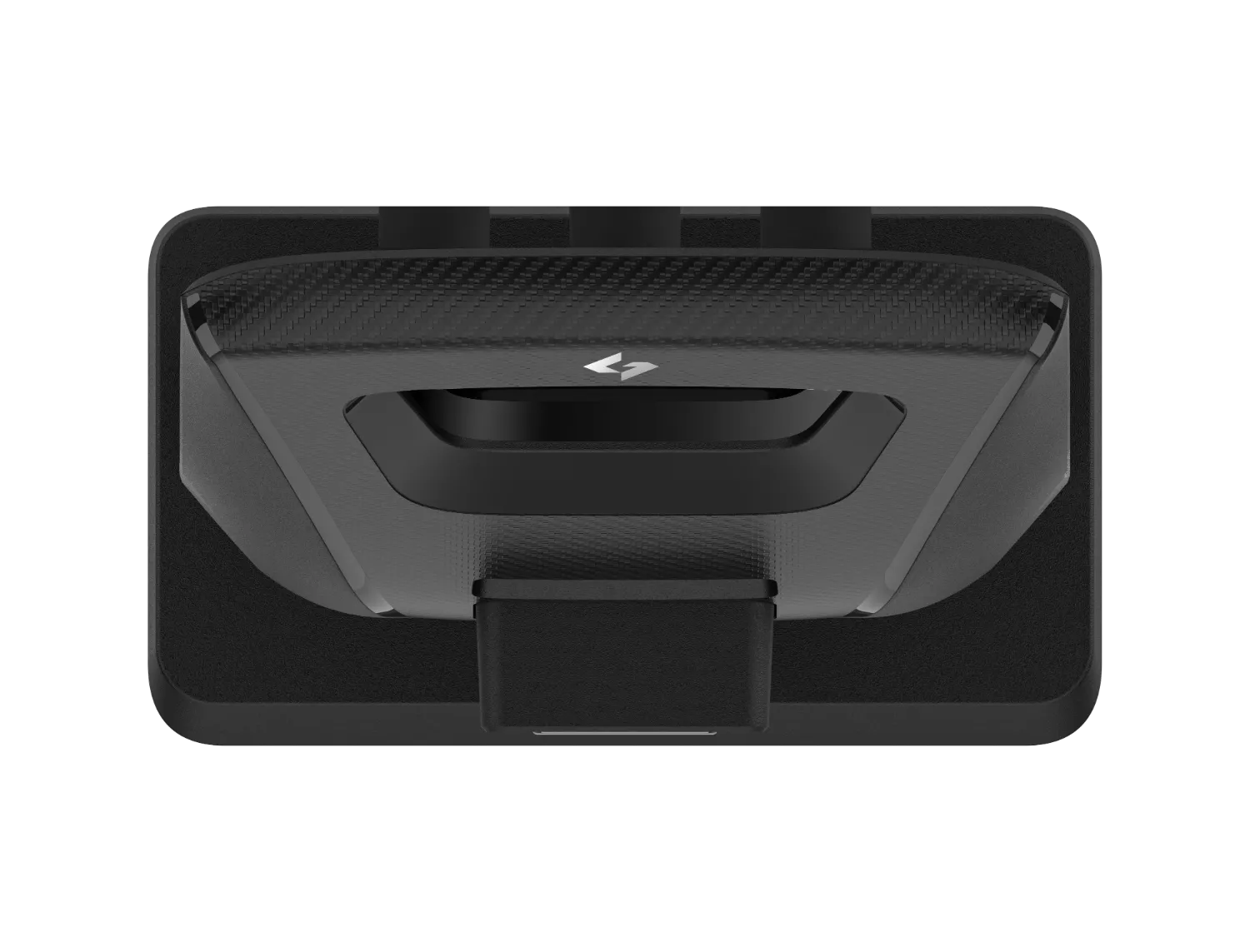

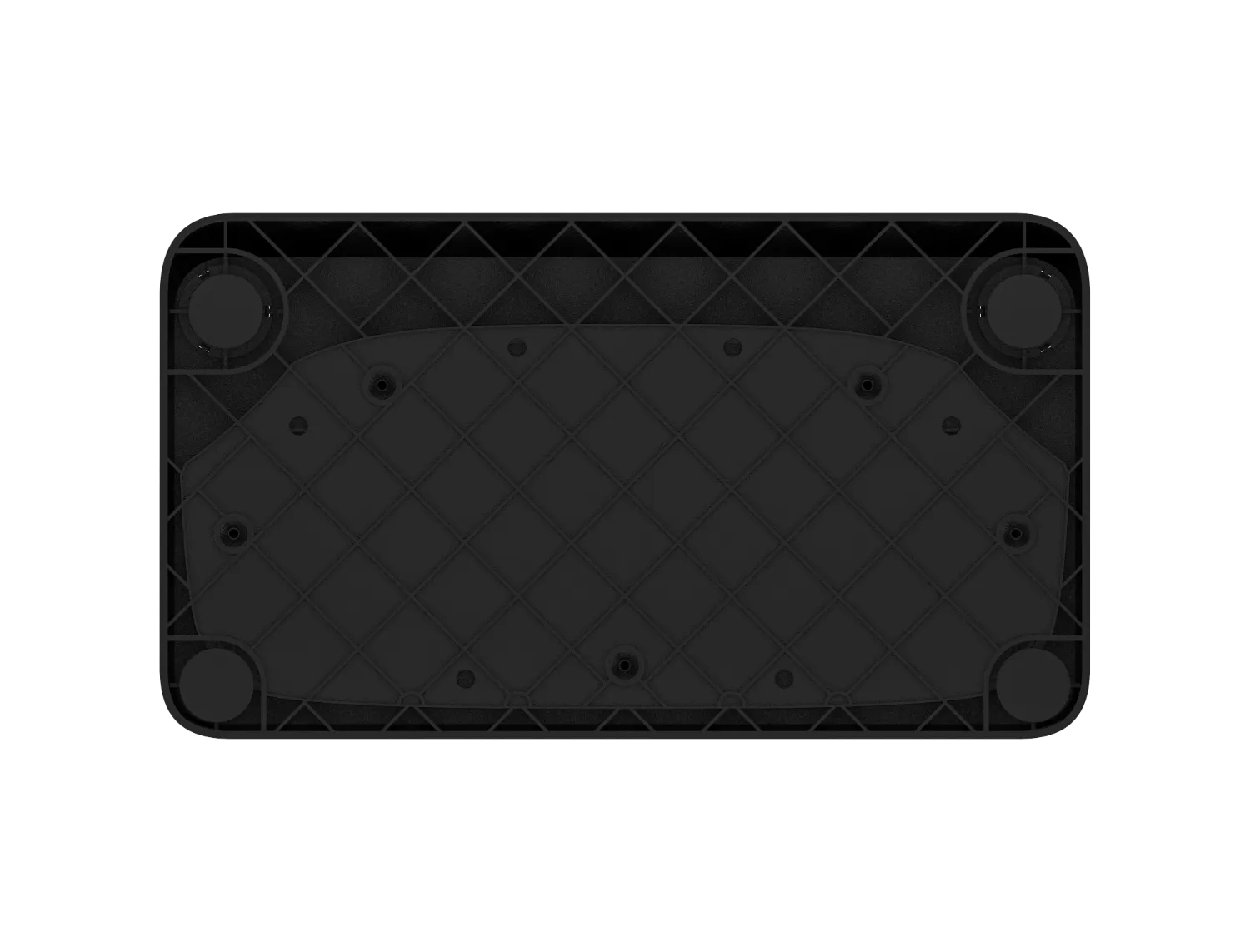

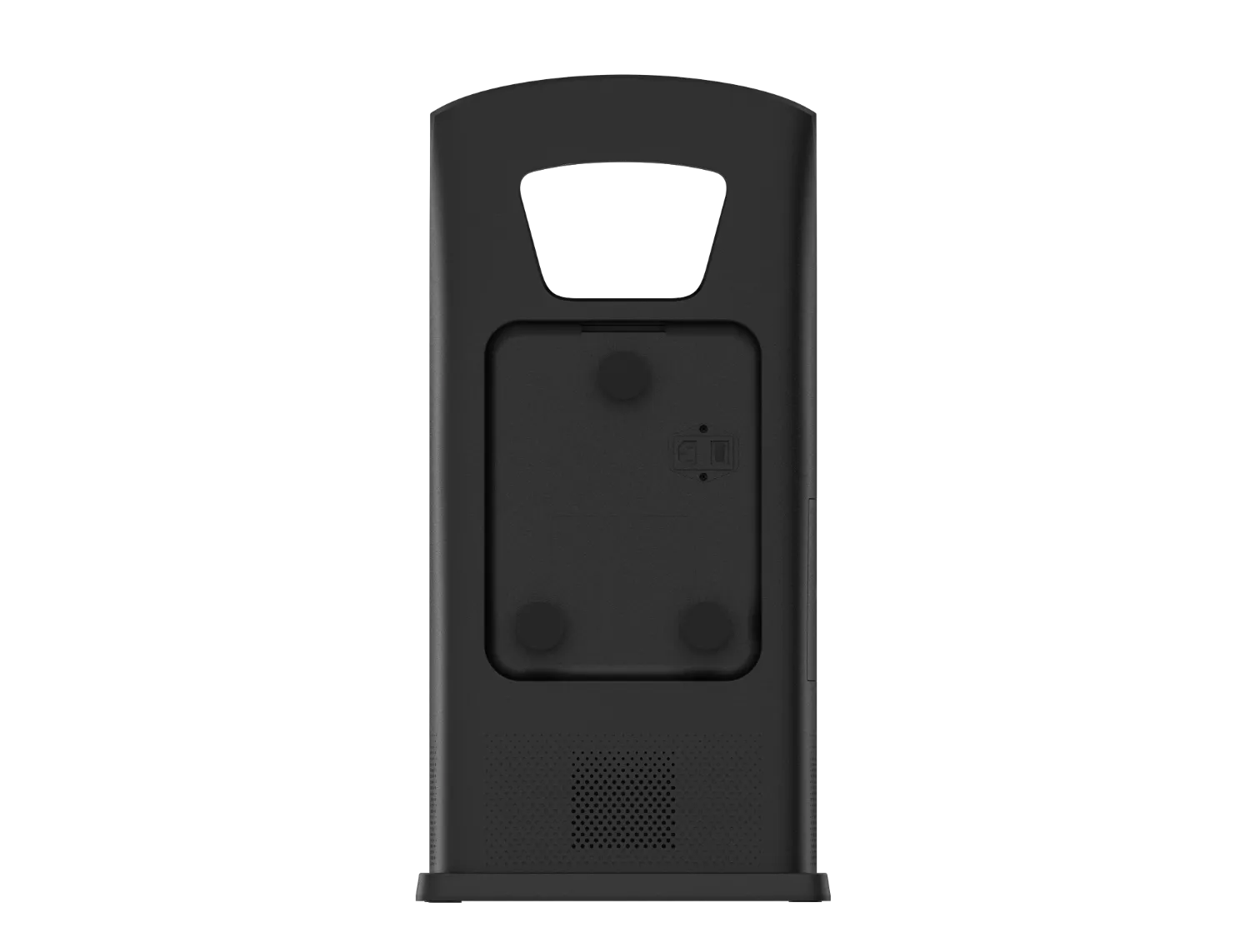

CS-03 CS-03 charging station — 3/4 viewCS-03 charging station — FrontCS-03 charging station — LeftCS-03 charging station — RightCS-03 charging station — RearCS-03 charging station — TopCS-03 charging station — Underside
CS-03Included · all models

The dedicated charger every Phantas comes home to.

The CS-03 is the standard, mandatory charging station shipped with every Phantas (v1.2 and up). Phantas self-docks here to recharge between tasks — and because it only charges, it works the same across all three cleaning modes: sweep, vacuum, and scrub. One compact, universal base for any deployment.

Best for:Universal — sweep, vacuum & scrub
Self-docking chargeWorks in every modeCompact footprintShips with every Phantas

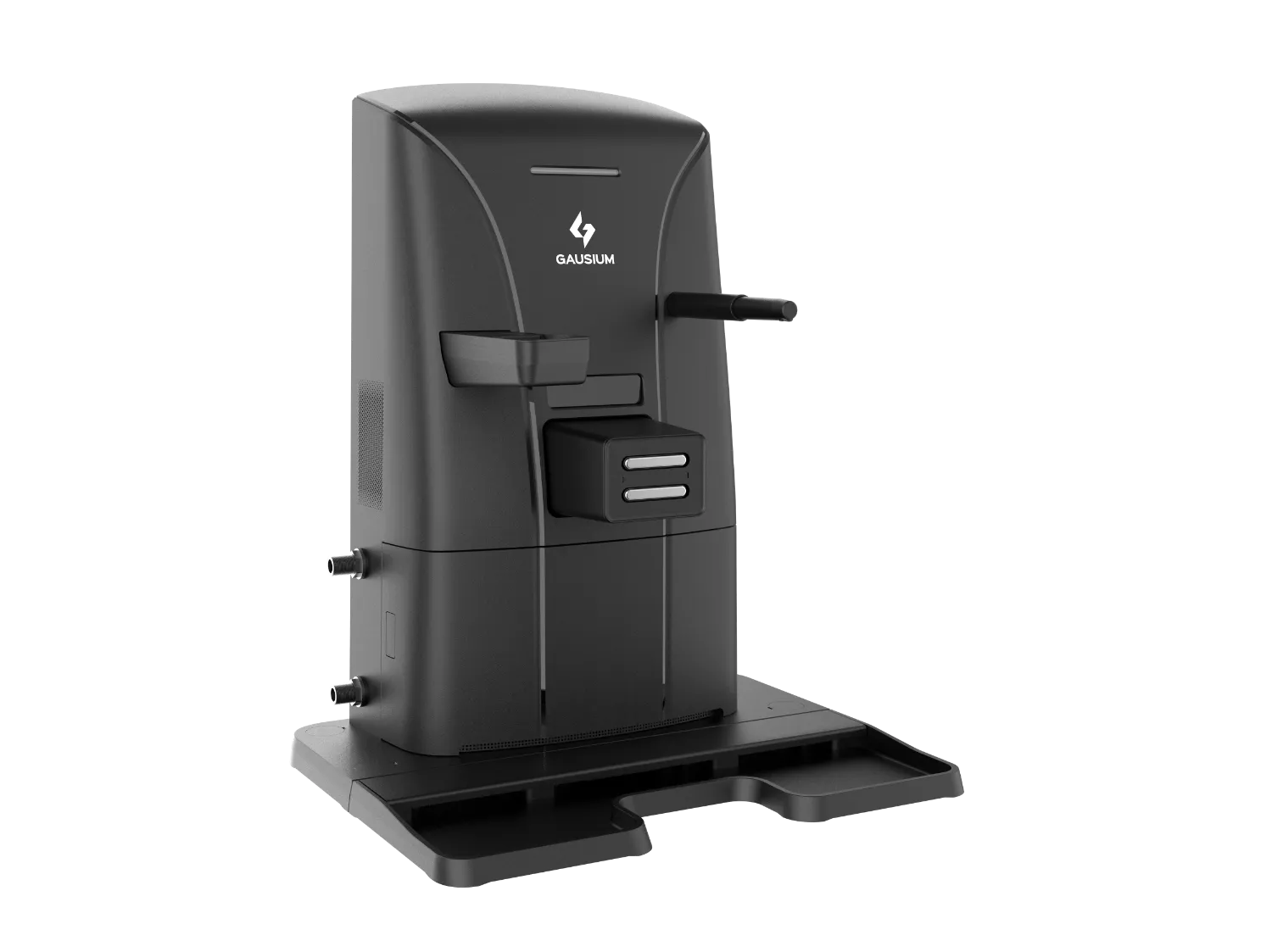

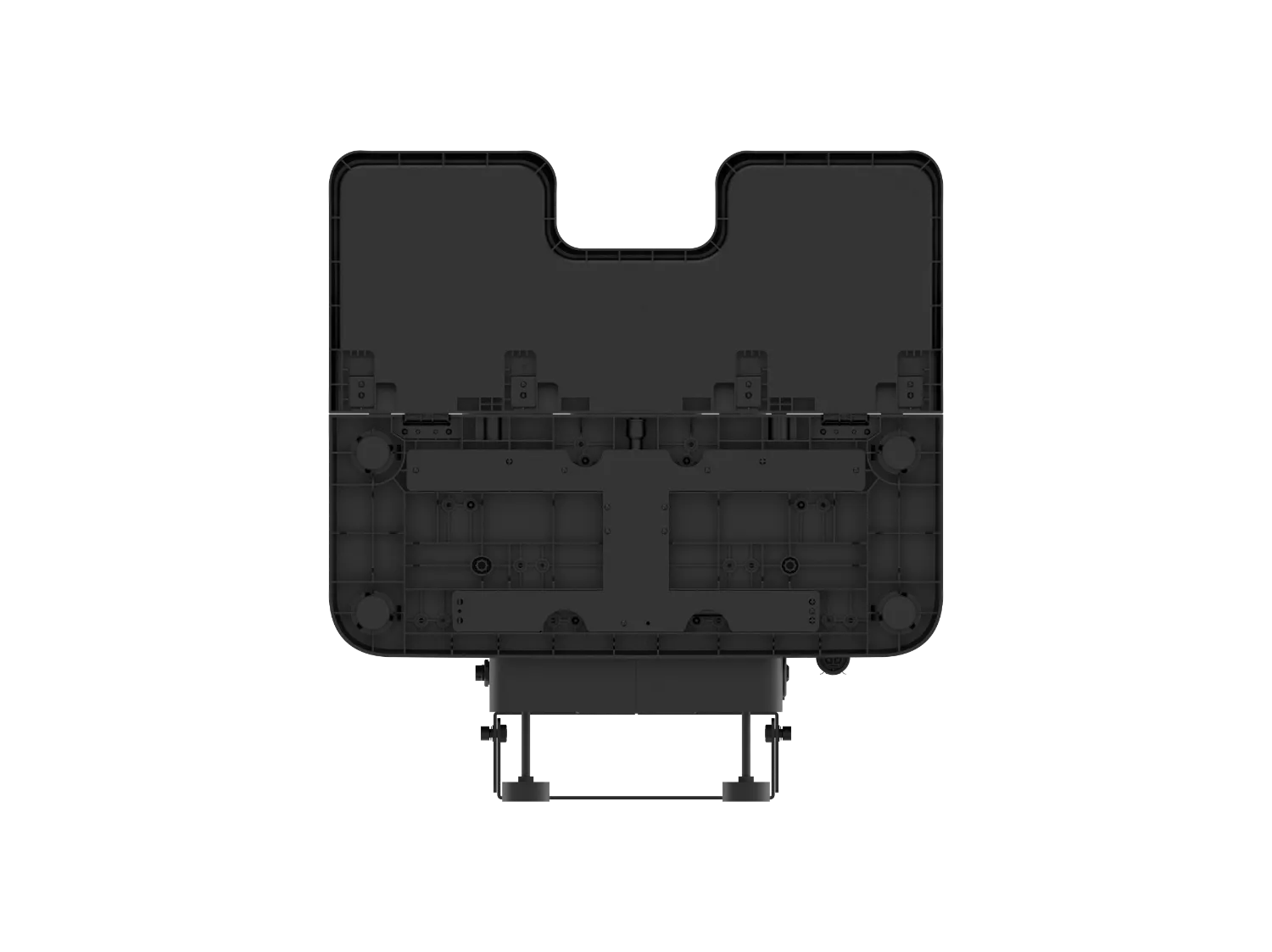

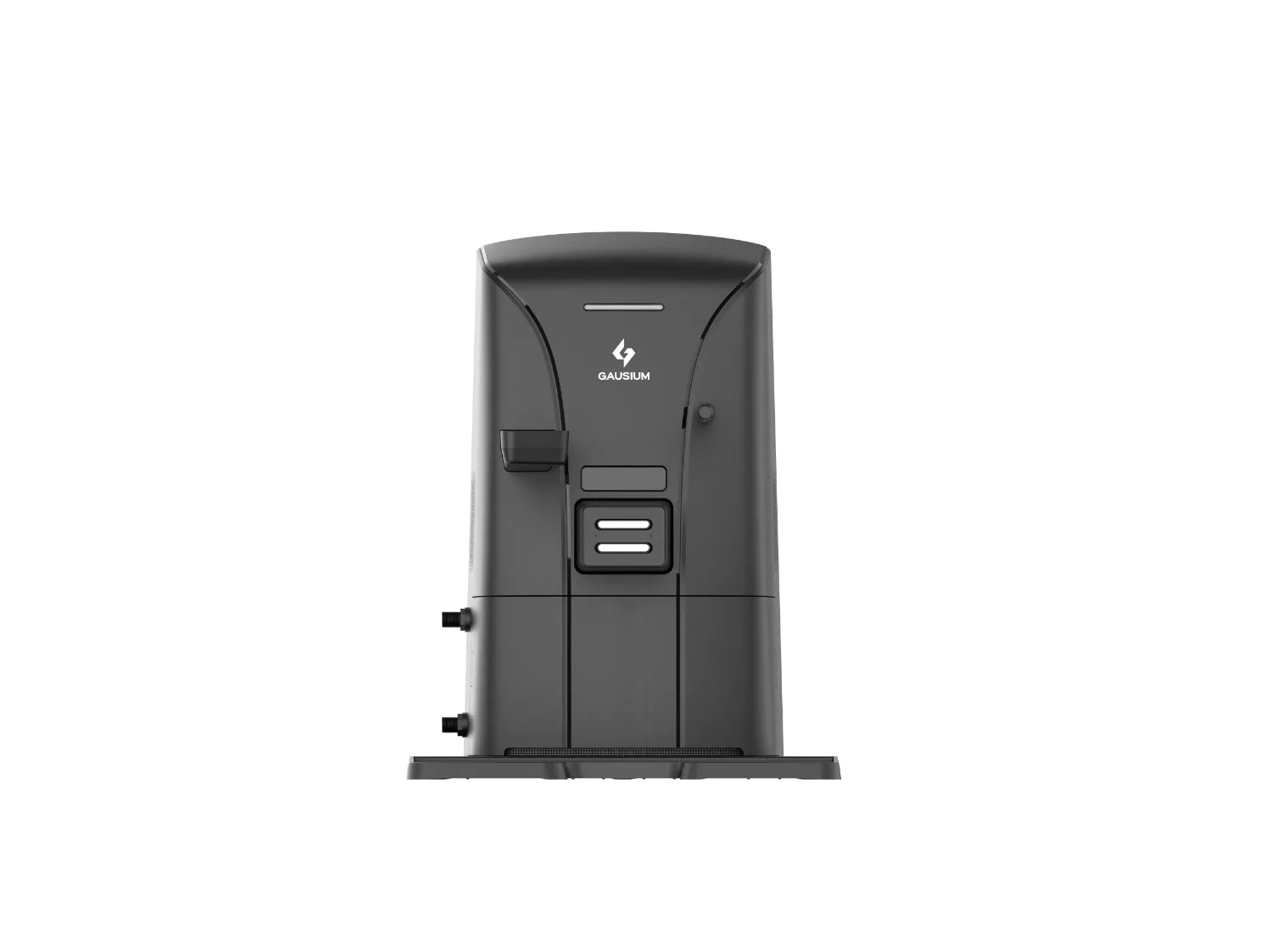

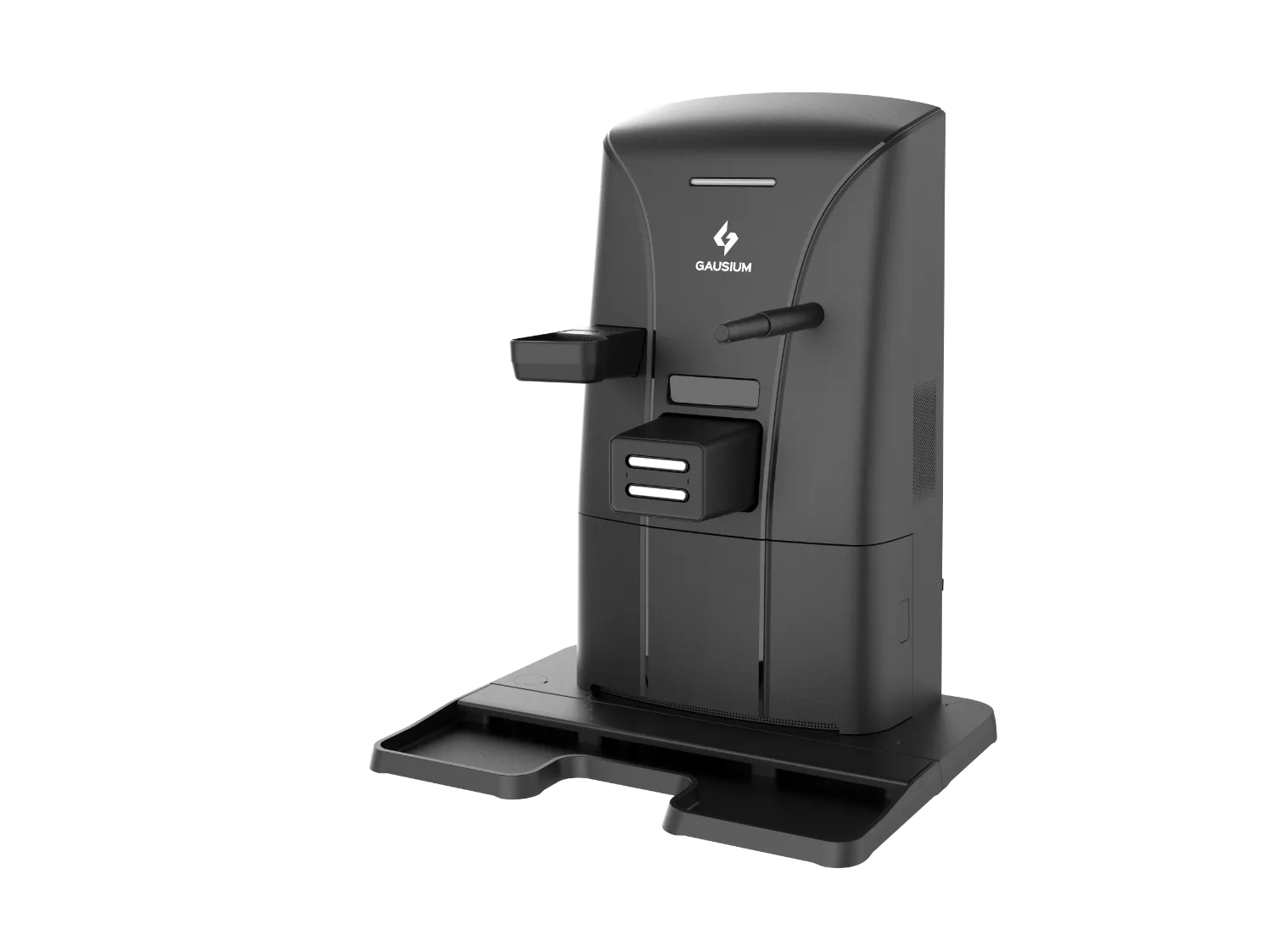

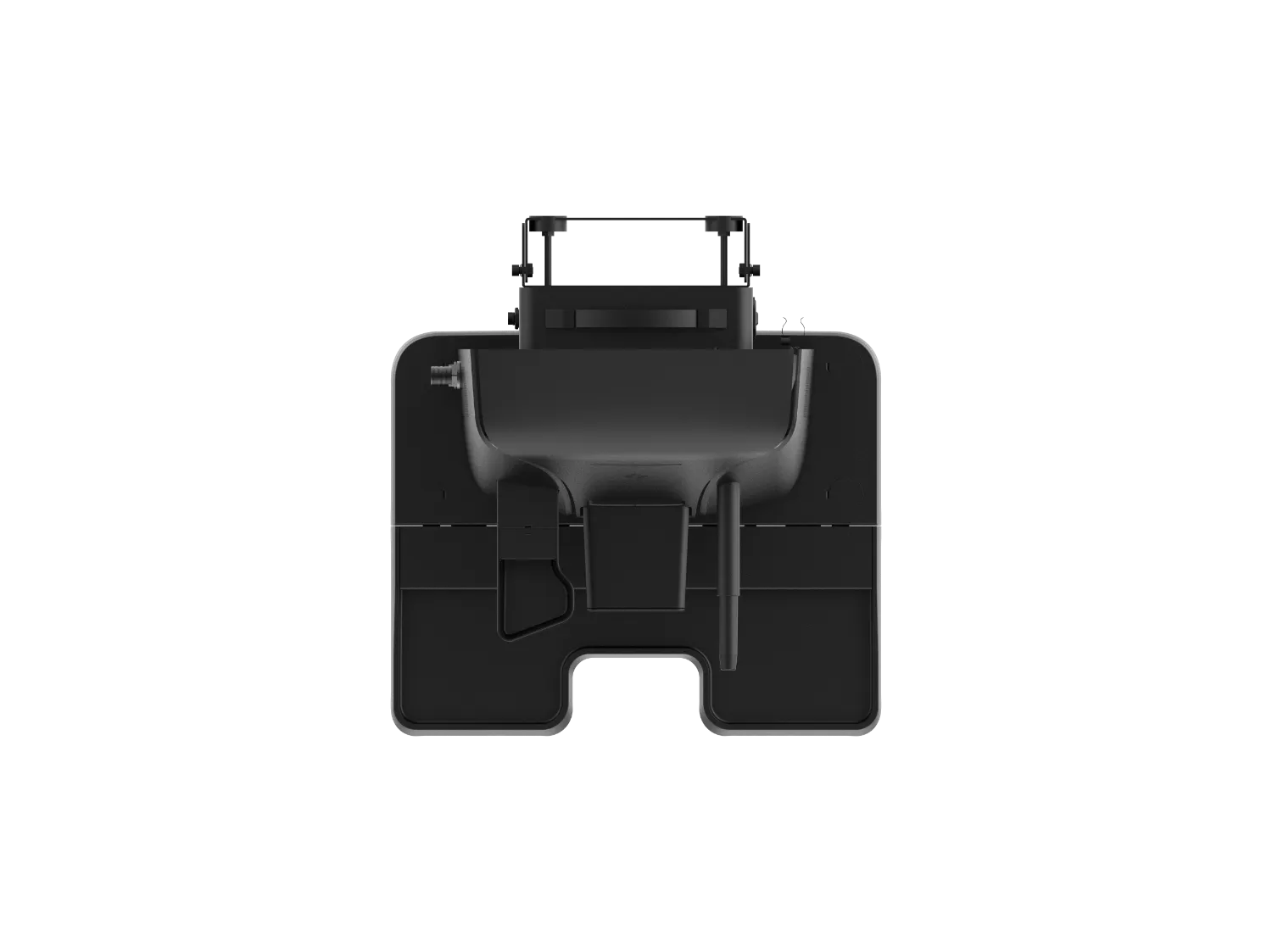

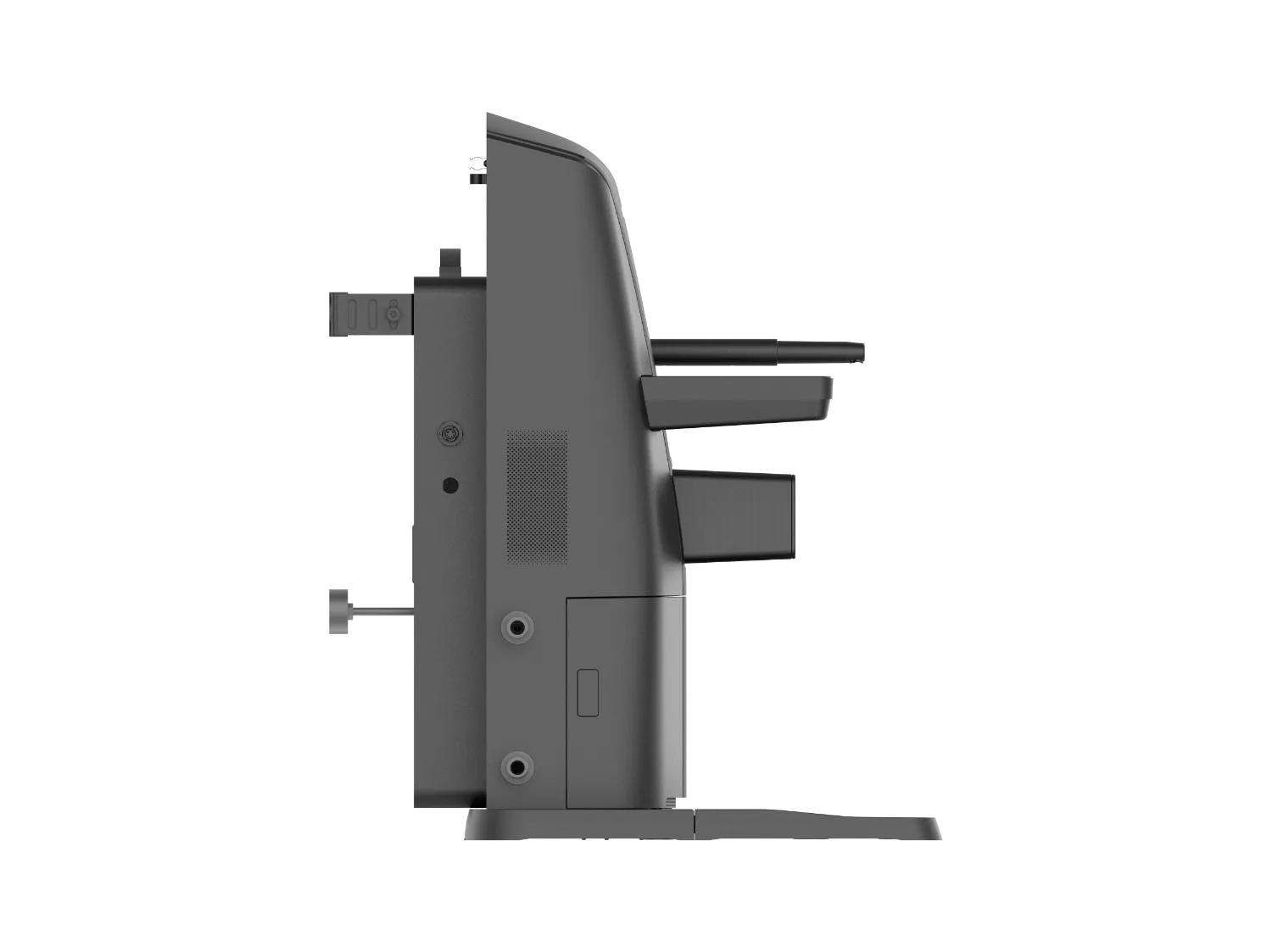

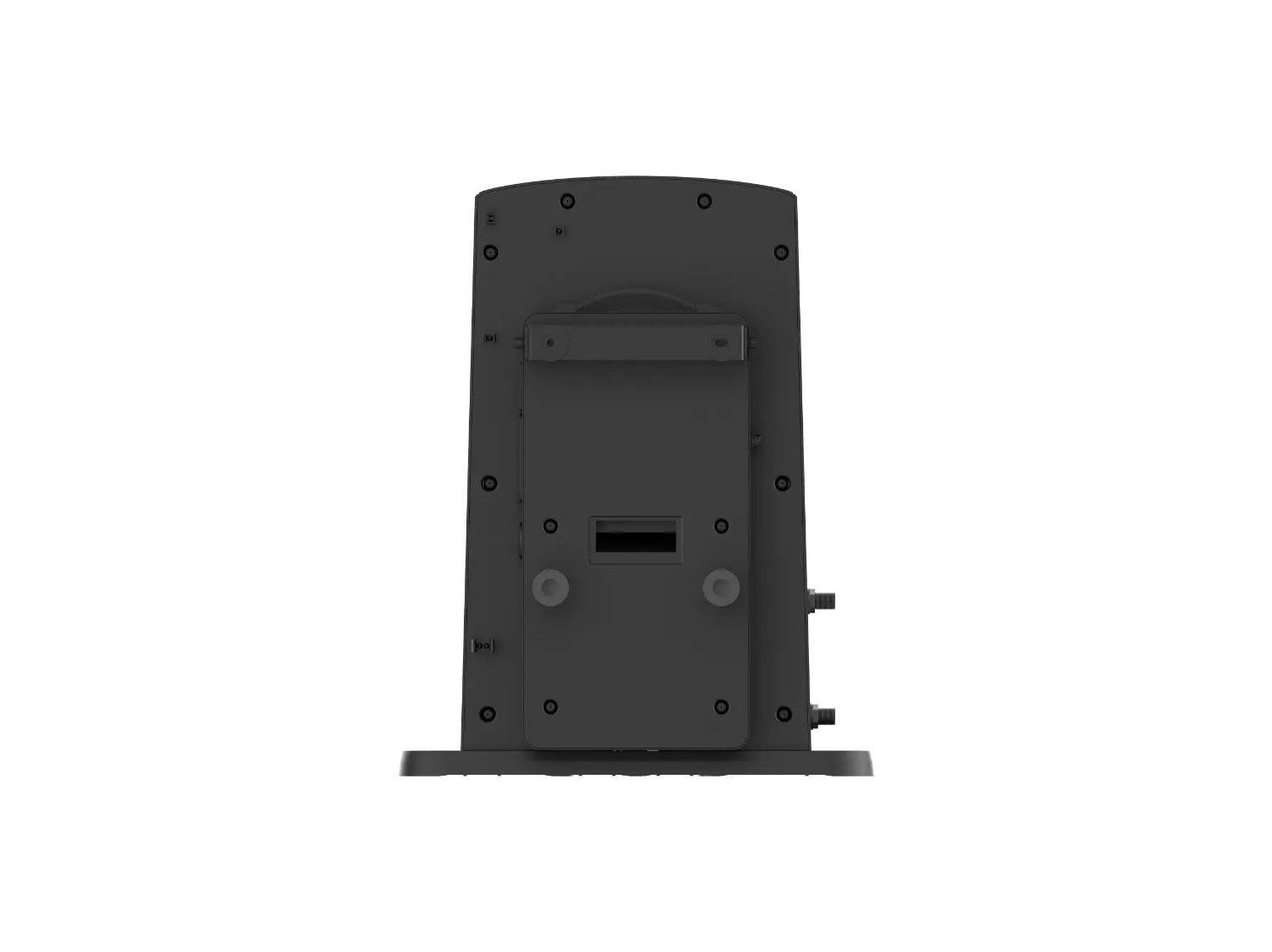

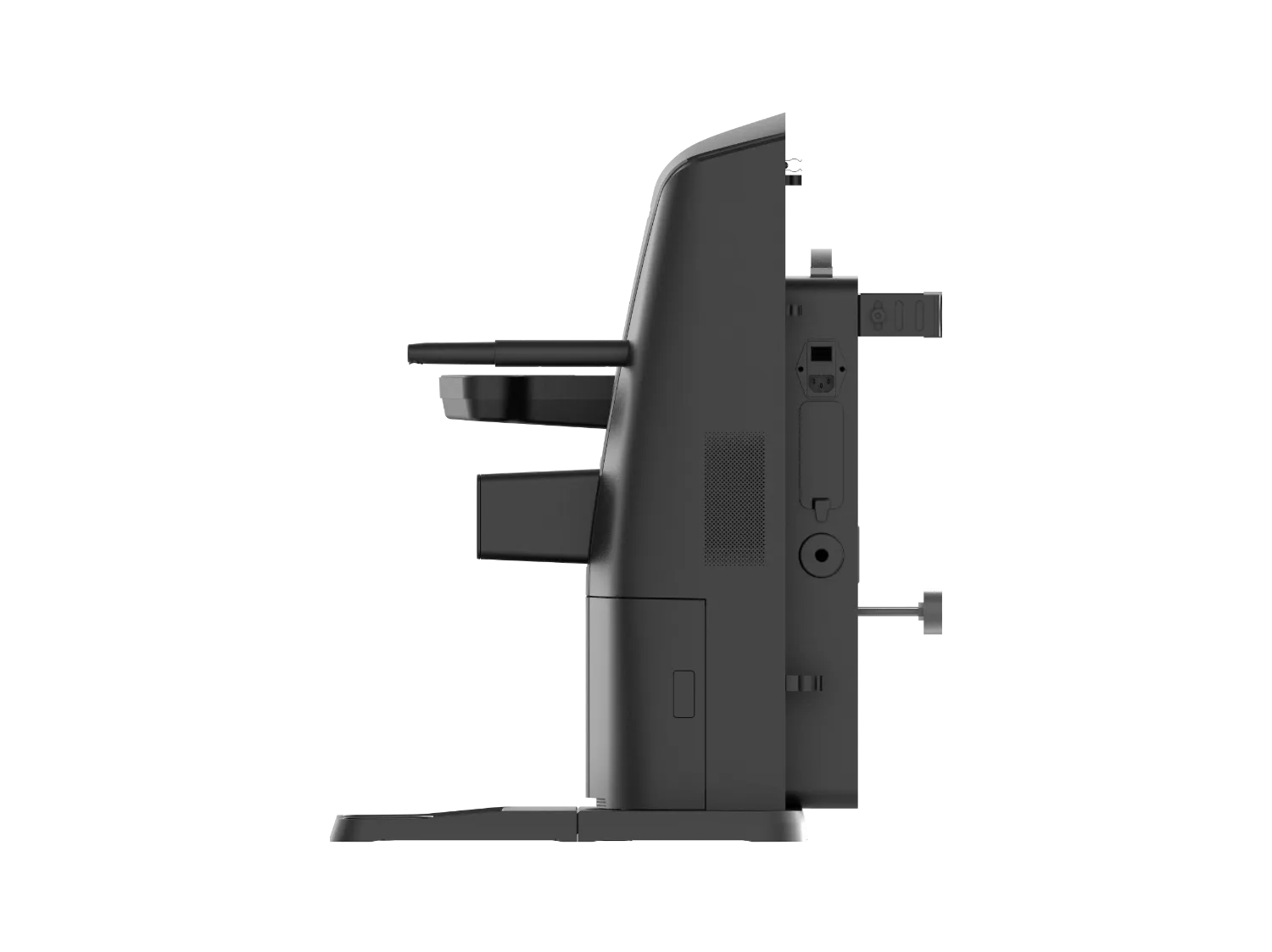

WS-03 WS-03 workstation — 3/4 viewWS-03 workstation — Front 3/4WS-03 workstation — FrontWS-03 workstation — SideWS-03 workstation — Opposite sideWS-03 workstation — RearWS-03 workstation — TopWS-03 workstation — Underside
WS-03Optional · scrub models

Docks itself. Refills itself. Runs without you.

The optional WS-03 workstation adds clean-water refill and waste discharge on top of self-docking charge — built for 2025 and newer scrub-capable units. Phantas runs scheduled, operator-free wet-cleaning shifts overnight and between footfall, then returns to refill and empty on its own.

Best for:Scrubbing only — 2025 & newer units
Self-docking chargeAuto water refillAuto waste dischargeUnattended scrub shifts
How they compare
CS-03Charging station
WS-03Workstation
Self-docking charge
Clean-water refill
Waste discharge
Cleaning modes supportedAll — sweep, vac, scrubScrub only
AvailabilityStandard on every PhantasOptional · 2025+ units

See if Phantas fits your floors.

Tell us your environment and square footage — we'll confirm the match and walk you through deployment and Copilot support.
